Sprue grippers for injection molding
JK Sprue gripper assemblies and sensors
JK sprue gripper assemblies and sensors. Compare model dimensions, technical specifications and installation drawings to configure your EOAT assembly.
Series image shown. Confirm the exact configuration against the model data below.
Price and lead time: confirmed on inquiry.
Technical specifications
Sensor options
| Model | Output | Cable length |
|---|---|---|
| JK0PNP | PNP | 1 m |
| JK0NPN | NPN | 1 m |

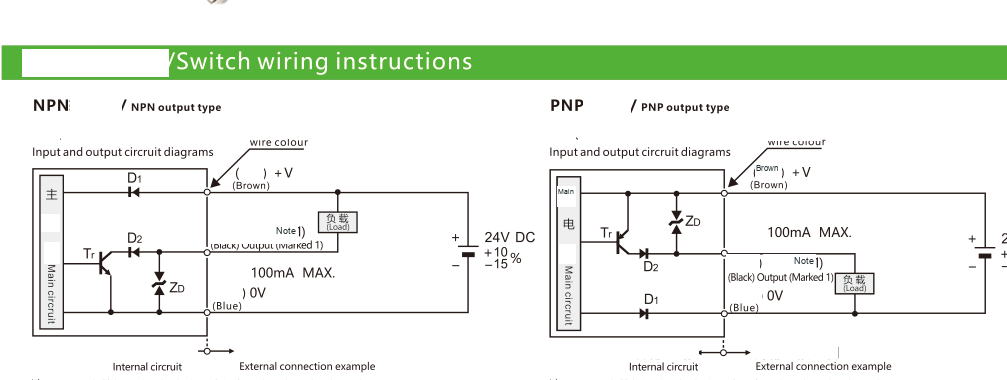

Electrical connections
| Parameter | Value |
|---|---|
| Supply | 24 VDC |
| Maximum output current | 100 mA |
| Brown wire | +V |
| Black wire | Output |
| Blue wire | 0 V |
Output has no short-circuit protection. Do not connect it directly to the supply or a capacitive load.
ENGINEERING RESOURCES
Technical drawings
Inspect mounting holes, dimensions and interfaces. Open a drawing to zoom in or download the image.
Enlarge drawing ↗JK · Dimensions
Enlarge drawing ↗JK · Dimensions
Enlarge drawing ↗JK · Dimensions

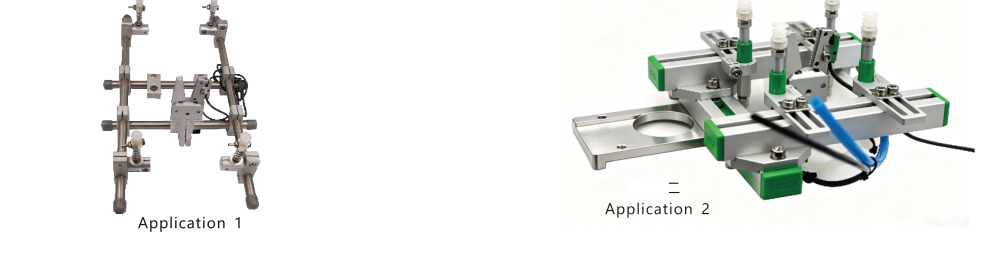

Application details for your quotation
Confirm the gate geometry, available gripping space and sensor requirements. Compare the stated operating conditions as well as the nominal gripping force.
Read the selection guide ↗
