Sprue grippers for injection molding
JO Angular finger grippers
JO angular finger grippers. Compare model dimensions, technical specifications and installation drawings to configure your EOAT assembly.
Series image shown. Confirm the exact configuration against the model data below.
Price and lead time: confirmed on inquiry.
Technical specifications
Material and temperature options
| Model | Weight (g) | Temperature (°C) |
|---|---|---|
| JOF20-20-NBR | 57.4 | −20 to 80 |
| JOF20-20-VMQ | 57.4 | −40 to 160 |
| JOP20-20-NBR | 50 | −20 to 80 |
| JOP20-20-VMQ | 50 | −40 to 160 |
ENGINEERING RESOURCES

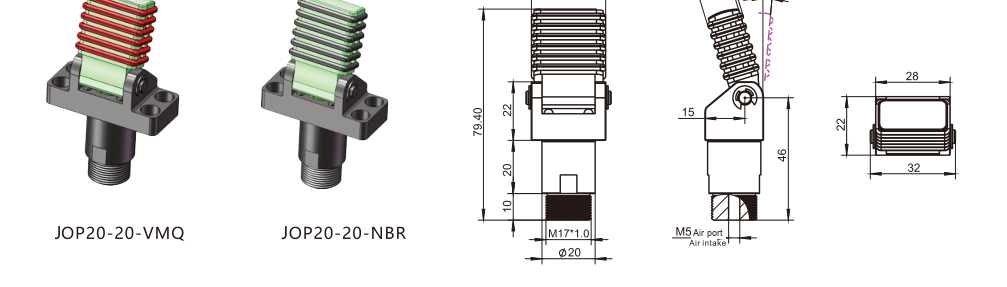

Technical drawings
Inspect mounting holes, dimensions and interfaces. Open a drawing to zoom in or download the image.
Enlarge drawing ↗JO · Dimensions
Enlarge drawing ↗JO · Dimensions
Application details for your quotation
Confirm the gate geometry, available gripping space and sensor requirements. Compare the stated operating conditions as well as the nominal gripping force.
