JR2010 Pneumatic needle grippers
JR2010 pneumatic needle grippers. Compare model dimensions, technical specifications and installation drawings to configure your EOAT assembly.
Series image shown. Confirm the exact configuration against the model data below.
Price and lead time: confirmed on inquiry.
Technical specifications
Needle gripper specifications
| Model | Weight (g) |
|---|---|
| JR2010-4 | 274 |
| JR2010-8 | 317 |
| JR2010-4251 | 240 |
| JR2010-4221 | 220 |
| JR2010-8251 | 480 |
Operating parameters
| Parameter | Value |
|---|---|
| Medium | Filtered compressed air, lubricated or unlubricated |
| Pressure | 3–8 bar |
| Temperature | −10–70 °C |
| Opening force at 6 bar | 90 N |
| Needle stroke | 0–10 mm |
| Cycle air consumption | 3.5 cm³ |
ENGINEERING RESOURCES
Technical drawings

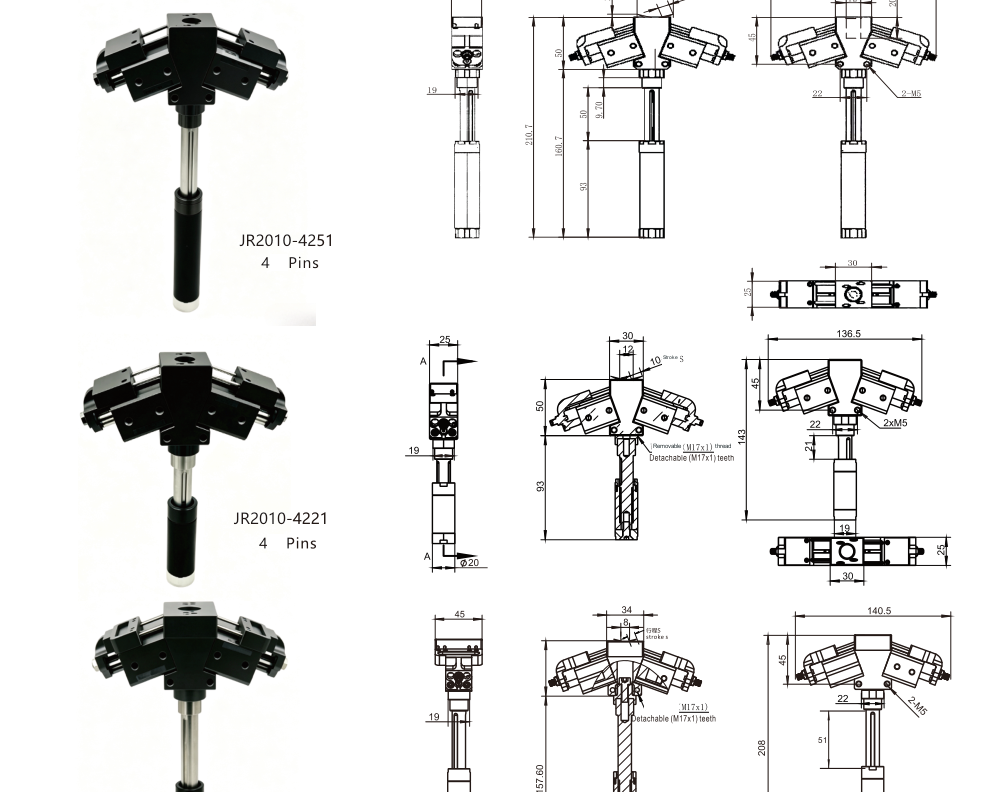

Inspect mounting holes, dimensions and interfaces. Open a drawing to zoom in or download the image.
Enlarge drawing ↗JR2010 · Dimensions
Enlarge drawing ↗JR2010 · Dimensions
Application details for your quotation
Confirm the gate geometry, available gripping space and sensor requirements. Compare the stated operating conditions as well as the nominal gripping force.
Read the selection guide ↗
