EOAT frame connectors
JFP-A50 Adjustable fixing plates
JFP-A50 adjustable fixing plates. Compare model dimensions, technical specifications and installation drawings to configure your EOAT assembly.

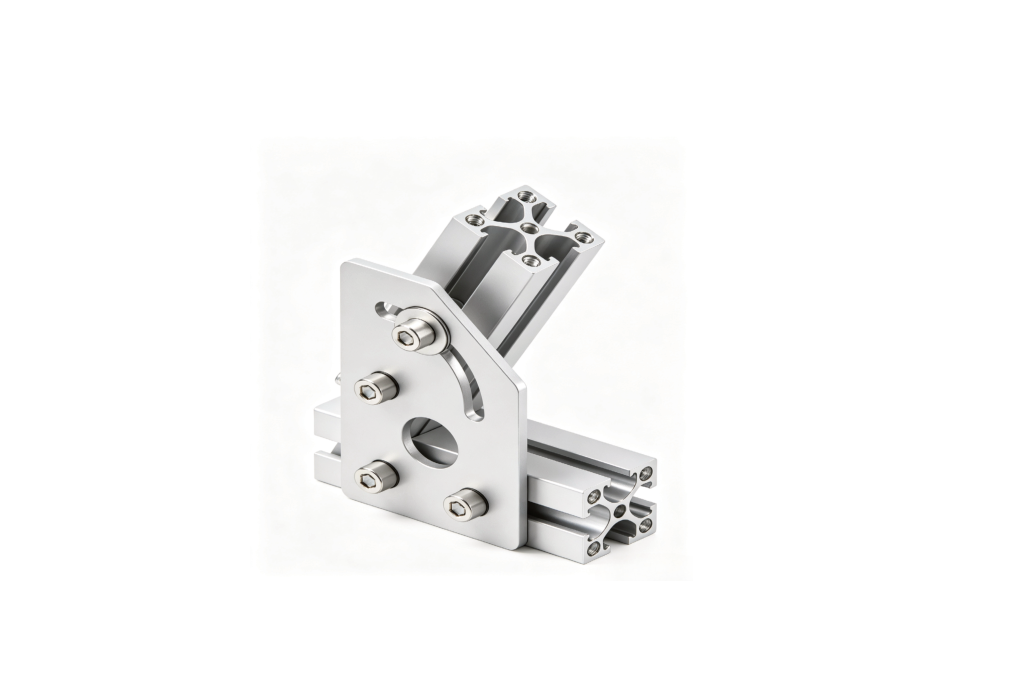

Series image shown. Confirm the exact configuration against the model data below.
Price and lead time: confirmed on inquiry.
Technical specifications
Dimensions and mounting specifications
| Model | JFP-A50 |
|---|---|
| QC-G• | JQC-G50 |
| Thickness T | 3mm |
| Screws | JTC-M5L12*4 |
| Single-hole shim | JTS-M5*4 |
| T-nuts | JTN-M5P25*2 |
| Weight | 115g |
Dimensions in mm unless otherwise stated. ✓ indicates compatibility.
ENGINEERING RESOURCES
Technical drawings
Inspect mounting holes, dimensions and interfaces. Open a drawing to zoom in or download the image.
Enlarge drawing ↗JFP-A50 · Dimensions
Enlarge drawing ↗Assembly and application
Application details for your quotation
Match the profile series before choosing a plate. Check the screw and T-nut combination in the compatibility tables rather than assuming that equal outside dimensions mean equal fit.
Read the selection guide ↗
