Pneumatic air nippers & sprue cutters
GT-NK10 / GT-TC-02 Thrust cut nippers and tooling cylinders
GT-NK10 / GT-TC-02 thrust cut nippers and tooling cylinders. Compare model dimensions, technical specifications and installation drawings to configure your EOAT assembly.
Series image shown. Confirm the exact configuration against the model data below.
Price and lead time: confirmed on inquiry.
Technical specifications
GT-NK10 performance
| Parameter | Value |
|---|---|
| ABS cutting capacity | Ø5 mm |
| Air consumption | 110 cm³/stroke |
| Air pressure | 0.4–0.5 MPa |
| Weight | 800 g |
| Applied force | 735 N |
| Maximum piston stroke | 12 mm |
| Hose port | ID 2.5 / OD 4 mm |
| Hose coupling | ID 4 / OD 6 mm |
NK10AJ blade
| Model | Overall length | Weight | Material | Compatible body |
|---|---|---|---|---|
| NK10AJ | 95 mm | 96 g | Special alloy steel | GT-NK10 |
GT-TC-02 timing controller
| Parameter | Value |
|---|---|
| Timing adjustment | 0.5–1.5 s |
| Working pressure | 0.6 MPa |
| Dimensions H × L × T | 46 × 80 × 34 mm |
| Weight | 275 g |
| Tube connection | ID 4 / OD 6 mm |
Controller connection capacity
| Nipper model | Units |
|---|---|
| GT-NY05 | 4 |
| GT-NY10 | 3 |
| GT-NY15 | 1 |
| GT-NY25 | 1 |
| GT-NT03 | 6 |
| GT-NT05 | 4 |
| GT-NT10 | 2 |
| GT-NT20 | 1 |
| GT-NB20 | 2 |
| GT-NB30 | 1 |
| GT-NB20LW | 2 |
| GT-NB30LW | 1 |
ENGINEERING RESOURCES
Technical drawings
Inspect mounting holes, dimensions and interfaces. Open a drawing to zoom in or download the image.

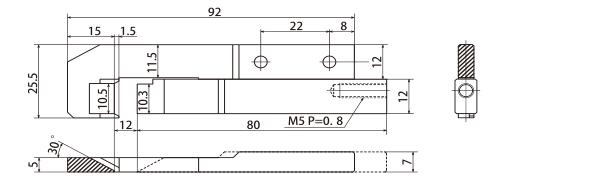

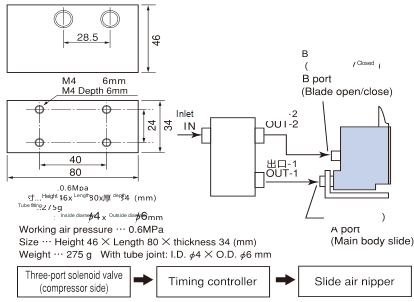

Enlarge drawing ↗GT-NK10 / GT-TC-02 · Dimensions
Enlarge drawing ↗GT-NK10 / GT-TC-02 · Dimensions
Enlarge drawing ↗GT-NK10 / GT-TC-02 · Dimensions
Application details for your quotation
Specify the material, gate cross-section, cutting position and temperature requirement when requesting a quotation. Confirm the blade and heating configuration for the application.
Read the selection guide ↗
