Pneumatic air nippers & sprue cutters
NT-AD / AJV / AE Vertical nipper blades
NT-AD / AJV / AE vertical nipper blades. Compare model dimensions, technical specifications and installation drawings to configure your EOAT assembly.
Series image shown. Confirm the exact configuration against the model data below.
Price and lead time: confirmed on inquiry.
Technical specifications
AD lift blades
| Model | a (mm) | b (mm) | f×g (mm) | d1 (mm) | d2 (mm) | e (mm) | L (mm) | Weight (g) | Material | Compatible bodies |
|---|---|---|---|---|---|---|---|---|---|---|
| NT05AD | 31.5 | 7 | 6×18 | 2.5 | 4.5 | 6 | 67.5 | 37 | Special alloy steel | GT-NT05 |
| NT10AD | 39 | 9 | 8×21.5 | 4 | 5 | 7 | 86 | 65 | Special alloy steel | GT-NT10 |
| NT20AD | 46 | 12 | 9×24.5 | 6 | 7 | 9 | 103 | 141 | Special alloy steel | GT-NT20 |
AJV V-shaped blades
| Model | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) | L (mm) | Weight (g) | Material | Compatible bodies |
|---|---|---|---|---|---|---|---|---|---|
| NT05AJV | 29 | 7 | 5 | 15 | 6 | 65 | 29 | Special alloy steel | GT-NT05 |
| NT10AJV | 35 | 9 | 6 | 17 | 7 | 82 | 63 | Special alloy steel | GT-NT10 |
5° cutting-edge geometry for curved gates and flush finishing.
AE nipping blades
| Model | a (mm) | b (mm) | f×g (mm) | d (mm) | e (mm) | L (mm) | Weight (g) | Material | Compatible bodies |
|---|---|---|---|---|---|---|---|---|---|
| NT05AE | 29 | 7 | 6×18 | 7 | 6 | 65 | 36 | Special alloy steel | GT-NT05 |
| NT10AE | 35 | 9 | 8×21.5 | 9 | 7 | 82 | 75 | Special alloy steel | GT-NT10 |
ENGINEERING RESOURCES
Technical drawings
Inspect mounting holes, dimensions and interfaces. Open a drawing to zoom in or download the image.

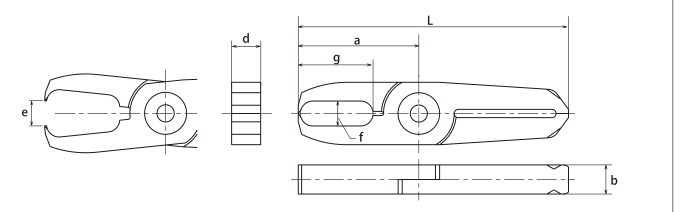

Enlarge drawing ↗NT-AD / AJV / AE · Dimensions

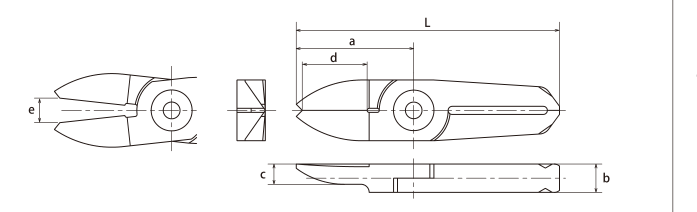

Enlarge drawing ↗NT-AD / AJV / AE · Dimensions
