Pneumatic air nippers & sprue cutters
NY-AJ / AJL / AJT Horizontal nipper blades
NY-AJ / AJL / AJT horizontal nipper blades. Compare model dimensions, technical specifications and installation drawings to configure your EOAT assembly.
Series image shown. Confirm the exact configuration against the model data below.
Price and lead time: confirmed on inquiry.
Technical specifications
AJ / RAJ / AJB straight blades
| Model | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) | L (mm) | Weight (g) | Material | Compatible bodies |
|---|---|---|---|---|---|---|---|---|---|
| NY03AJ | 21 | 7 | 4.5 | 10.5 | 3 | 48 | 17 | Special alloy steel | GT-NY03G(-4) |
| NY03RAJ | 21 | 7 | 4.5 | 10.5 | 3 | 48 | 17 | Special alloy steel | GT-NY03GR(-4) |
| NY05AJ | 22 | 7 | 5 | 10.5 | 4 | 53 | 22 | Special alloy steel | GT-NY05(-4) / NF05 |
| NY05RAJ | 22 | 7 | 5 | 10.5 | 4 | 53 | 22 | Special alloy steel | GT-NY05R(-4) / NF05 |
| NY05AJB | 22 | 7 | 5 | 10.5 | 4 | 53 | 22 | Sintered alloy | GT-NY05(-4) / NF05 |
| NY10AJ | 24 | 7.2 | 5 | 12 | 6 | 57 | 28 | Special alloy steel | GT-NY10(-4) / NY10G(-4) / NF10 / NY10S |
| NY10RAJ | 24 | 7.2 | 5 | 12 | 6 | 57 | 28 | Special alloy steel | GT-NY10R(-4) / NY10GR(-4) / NF10 / NY10S |
| NY10AJB | 24 | 7.2 | 5 | 12 | 6 | 57 | 28 | Sintered alloy | GT-NY10(-4) / NY10G(-4) / NF10 / NY10S |
| NY15AJ | 27 | 8.2 | 5.5 | 13 | 8 | 65 | 41 | Special alloy steel | GT-NY15(-4) / NF15 |
| NY15RAJ | 27 | 8.2 | 5.5 | 13 | 8 | 65 | 41 | Special alloy steel | GT-NY15R(-4) / NF15 |
| NY15AJB | 27 | 8.2 | 5.5 | 13 | 8 | 65 | 41 | Sintered alloy | GT-NY15(-4) / NF15 |
| NY25AJ | 31 | 10 | 6 | 16 | 9 | 77 | 65 | Special alloy steel | GT-NY25(-6) / NY25S |
| NY25RAJ | 31 | 10 | 6 | 16 | 9 | 77 | 65 | Special alloy steel | GT-NY25R(-6) / NY25S |
| NY25AJB | 31 | 10 | 6 | 16 | 9 | 77 | 65 | Sintered alloy | GT-NY25(-6) / NY25S |
AJ: unbeveled straight edge for plastic. RAJ: reverse bevel. AJB: brazed carbide tip for hard or glass-filled plastic.
AJL long straight blades
| Model | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) | L (mm) | Weight (g) | Material | Compatible bodies |
|---|---|---|---|---|---|---|---|---|---|
| NY03AJL | 27 | 7 | 4.5 | 10.5 | 4 | 54 | 21 | Special alloy steel | GT-NY03G(-4) |
| NY05AJL | 31 | 7 | 5 | 10.5 | 5.5 | 62 | 29 | Special alloy steel | GT-NY05(-4) / NF05 |
| NY10AJL | 33 | 7.2 | 5 | 12 | 8 | 66 | 37 | Special alloy steel | GT-NY10(-4) / NY10G(-4) / NF10 / NY10S |
| NY15AJL | 38 | 8.2 | 5.5 | 13 | 11 | 76 | 50 | Special alloy steel | GT-NY15(-4) / NF15 |
| NY25AJL | 46 | 10 | 6 | 16 | 13 | 92 | 88 | Special alloy steel | GT-NY25(-6) / NY25S |
AJT thin straight blades
| Model | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) | L (mm) | Weight (g) | Material | Compatible bodies |
|---|---|---|---|---|---|---|---|---|---|
| NY03AJT | 21 | 7 | 2.5 | 10.5 | 3 | 48 | 17 | Special alloy steel | GT-NY03G(-4) |
| NY05AJT | 22 | 7 | 3 | 10.5 | 4 | 53 | 21 | Special alloy steel | GT-NY05(-4) / NF05 |
| NY10AJT | 24 | 7.2 | 3 | 12 | 6 | 57 | 26 | Special alloy steel | GT-NY10(-4) / NY10G(-4) / NF10 / NY10S |
| NY15AJT | 27 | 8.2 | 3.5 | 13 | 8 | 65 | 38 | Special alloy steel | GT-NY15(-4) / NF15 |
ENGINEERING RESOURCES

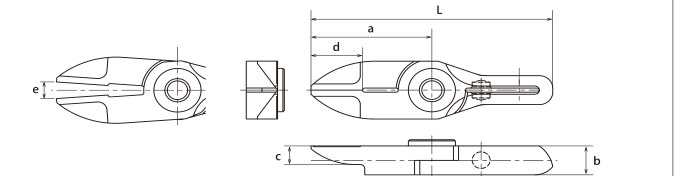

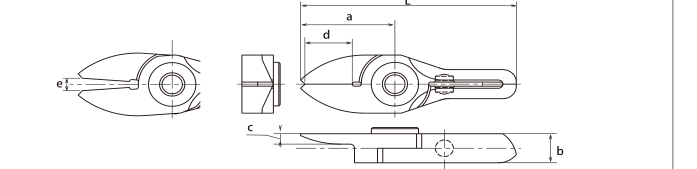

Technical drawings
Inspect mounting holes, dimensions and interfaces. Open a drawing to zoom in or download the image.
Enlarge drawing ↗NY-AJ / AJL / AJT · Dimensions
Enlarge drawing ↗NY-AJ / AJL / AJT · Dimensions
Enlarge drawing ↗NY-AJ / AJL / AJT · Dimensions
Application details for your quotation
Specify the material, gate cross-section, cutting position and temperature requirement when requesting a quotation. Confirm the blade and heating configuration for the application.
