Robot tool changers
JQA Square automatic tool changers
JQA square automatic tool changers. Compare model dimensions, technical specifications and installation drawings to configure your EOAT assembly.
Series image shown. Confirm the exact configuration against the model data below.
Price and lead time: confirmed on inquiry.
Technical specifications
Automatic tool changer specifications
| Model | Installation side | Payload | Weight |
|---|---|---|---|
| JQA-S10R | Robot | 10 kg | 466 g |
| JQA-S10G | Tool | 10 kg | 230 g |
Mounting and pneumatic interfaces
| Interface | Specification |
|---|---|
| Robot mounting | 4 × Ø6.6 mm; Ø11 mm counterbore, depth 8.5 mm |
| Tool mounting | 4 × M6 |
| Lock / unlock air ports | Ø4 mm |
| Air fittings | APB-M5-Ø6 / APB-M5-Ø4 |
ENGINEERING RESOURCES
Technical drawings
Inspect mounting holes, dimensions and interfaces. Open a drawing to zoom in or download the image.

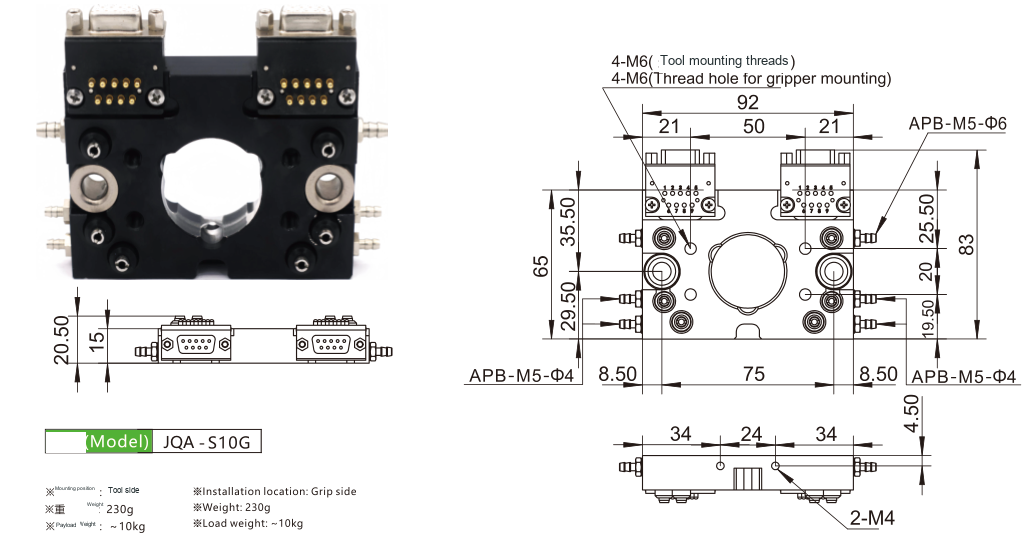

Enlarge drawing ↗JQA · Dimensions
Enlarge drawing ↗JQA · Dimensions
Application details for your quotation
Start with the complete tooling and workpiece load, then confirm mounting dimensions, moment capacity and pneumatic connections. Confirm the applicable pulling force and ordering code for your configuration.
Read the selection guide ↗
