Sprue grippers for injection molding
JBD18 Expanding grippers
JBD18 expanding grippers. Compare model dimensions, technical specifications and installation drawings to configure your EOAT assembly.
Series image shown. Confirm the exact configuration against the model data below.
Price and lead time: confirmed on inquiry.
Technical specifications
Bulging gripper dimensions (mm)
| Model | ØA | ØB | ØC | ØD | F | G | H | I | J | K | L | M | N | O | S | T | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| JBD18U | 18 | 24 | 18 | 14 | 5.5 | M12×1 | 90.5 | 22 | 8.5 | 31.5 | 18.5 | 21.5 | 13 | 10 | 16 | 7 | 39.7 |
| JBD22HU | 24 | 31.5 | 21.3 | 14 | 5.5 | M12×1 | 92 | 14 | 13 | 34.8 | 22 | 26.7 | 13.7 | 9 | 19 | 8 | 53.8 |
Replacement elastic sleeves
| Model | Diameter | Material | Compatible grippers |
|---|---|---|---|
| 18-S1 | Ø18 mm | Green silicone | JBD18U / JBD18HD |
| 18-S2 | Ø18 mm | Transparent silicone | JBD18U / JBD18HD |
| 22-S1 | Ø22 mm | Green silicone | JBD22HU |
| 22-S2 | Ø22 mm | Transparent silicone | JBD22HU |
Grip diameter range 18–31 mm. Body operating temperature 5–60 °C. H denotes a central through hole; D downward, U upward. Silicone sleeve expected service life approximately one million cycles.
ENGINEERING RESOURCES
Technical drawings
Inspect mounting holes, dimensions and interfaces. Open a drawing to zoom in or download the image.

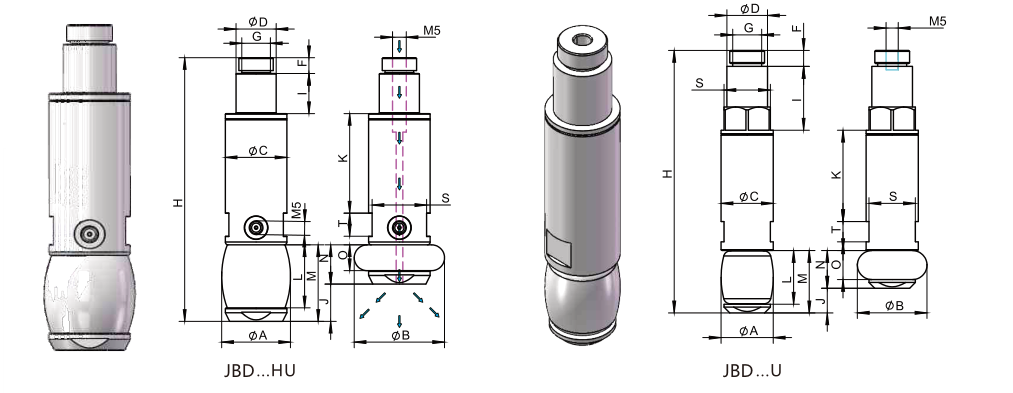

Enlarge drawing ↗JBD18 · Dimensions

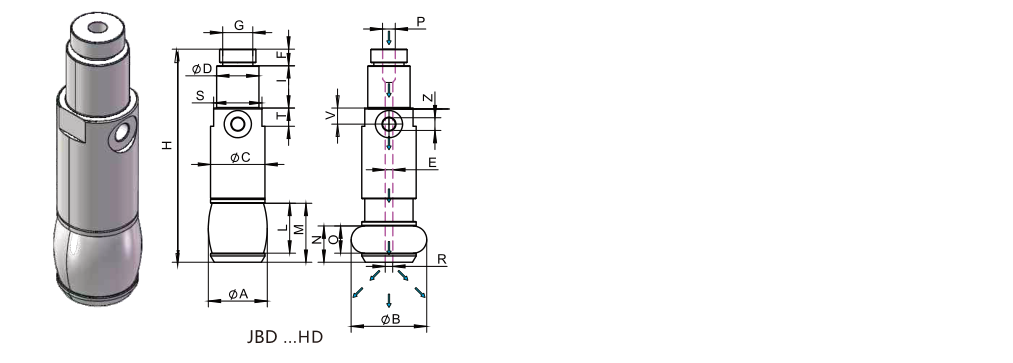

Enlarge drawing ↗JBD18 · Dimensions
Enlarge drawing ↗JBD18 · Dimensions

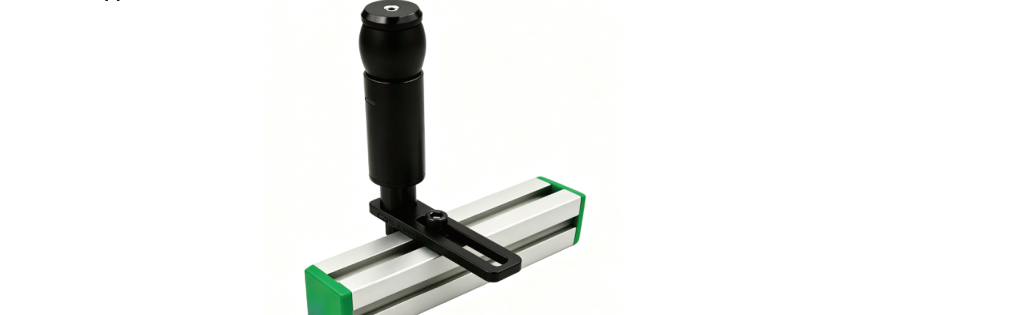

Enlarge drawing ↗Assembly and application
Application details for your quotation
Confirm the gate geometry, available gripping space and sensor requirements. Compare the stated operating conditions as well as the nominal gripping force.
