JM SERIES Vacuum cup fittings
Connect vacuum cups to your tooling assembly.
Series image shown. Confirm the exact configuration against the model data below.
Price and lead time: confirmed on inquiry.
Technical specifications
Vacuum cup fitting dimensions
| Model | Connection thread | Overall height (mm) | Weight (g) |
|---|---|---|---|
| JM10-G18 | G1/8 | 20.2 | 3.7 |
| JM11-M5 | M5 | 13 | 2 |
| JM11-G18 | G1/8 | 15.6 | 2.5 |
| JM12-M5 | M5 | 15.5 | 1.2 |
| JM13-M5 | M5 | 12 | 0.7 |
| JM14-M5 | M5 | 10.5 | 0.5 |
| JM02-G18 | G1/8 | 21 | 3.5 |
| JM04-G14 | G1/4 | 31 | 7 |
| JM06-G14 | G1/4 | 25 | 9.7 |
| JM07-G18 | G1/8 | 20 | 3.3 |
| JM08-M8 | M8 | 25 | 8.3 |
| JM09-M5 | M5 | 11 | 1.4 |
| JM15-G18 | G1/8 | 25.5 | 17.8 |
| JM16-G18 | G1/8 | 18.5 | 3.8 |
| JM17-G18 | G1/8 | 16 | 2.9 |
| JM18-M5 | M5 | 22.5 | 4.6 |
| JM20-G14 | G1/4 | 25 | 9.5 |
| JM21-M5 | M5 | 14 | 1.8 |
| JM22-M5 | M5 | 14.5 | 2.9 |
| JM23-G18 | G1/8 | 25 | 8.9 |
| JM24-G18 | G1/8 | 26.3 | 5.5 |
| JM25-M3 | M3 | 7.5 | 0.2 |
| JM27-M5 | M5 | 16.3 | 6.2 |
| JM28-M8 | M8 | 16.5 | 1.9 |
| JM29-M5 | M5 | 13.5 | 1.1 |
| JM30-G18 | G1/8 | 13.5 | 1.3 |
| JM31-M5 | M5 | 17.5 | 3.8 |
| JM32-G18 | G1/8 | 17.5 | 4.1 |
| JM33-M5 | M5 | 19.5 | 4 |
| JM34-G18 | G1/8 | 19.5 | 4.3 |
| JM41-G14 | G1/4 | 40 | 14 |
| JM10-G18-F | G1/8 female | 23 | 5.7 |
| JM35-M5 | M5 | 21.5 | 3.4 |
| JM36-G18 | G1/8 | 21.5 | 3.7 |
| JM37-M5 | M5 | 22 | 4.3 |
| JM38-G18 | G1/8 | 22 | 4.7 |
| JM39-M5 | M5 | 22.5 | 2.6 |
| JM40-G18 | G1/8 | 21 | 4 |
Thread adapter dimensions
| Model | Connection 1 | Connection 2 | Height (mm) | Weight (g) |
|---|---|---|---|---|
| JM-G18M-M10M | G1/8 M | M10×1.25 M | 21 | 4.5 |
| JM-G14M-M10M | G1/4 M | M10×1.25 M | 22 | 4.7 |
| JM-G18M-M5F | G1/8 M | M5 F | 13 | 2.9 |
| JM-G18M-M8F | G1/8 M | M8 F | 23 | 6.2 |
| JM-M5M-M8F | M5 M | M8 F | 22 | 5.6 |
| JM-M5M-G18F | M5 M | G1/8 F | 22 | 4.9 |
| JM-G14M-M8F | G1/4 M | M8 F | 23 | 6.7 |
M = male thread; F = female thread.
ENGINEERING RESOURCES
Technical drawings
Inspect mounting holes, dimensions and interfaces. Open a drawing to zoom in or download the image.
Enlarge drawing ↗JM10-G18 · dimensions
Enlarge drawing ↗JM11-M5 · dimensions
Enlarge drawing ↗JM11-G18 · dimensions
Enlarge drawing ↗JM12-M5 · dimensions
Enlarge drawing ↗JM13-M5 · dimensions
Enlarge drawing ↗JM14-M5 · dimensions
Enlarge drawing ↗JM02-G18 · dimensions
Enlarge drawing ↗JM04-G14 · dimensions
Enlarge drawing ↗JM06-G14 · dimensions
Enlarge drawing ↗JM07-G18 · dimensions
Enlarge drawing ↗JM08-M8 · dimensions
Enlarge drawing ↗JM09-M5 · dimensions
Enlarge drawing ↗JM15-G18 · dimensions
Enlarge drawing ↗JM16-G18 · dimensions
Enlarge drawing ↗JM17-G18 · dimensions
Enlarge drawing ↗JM18-M5 · dimensions
Enlarge drawing ↗JM20-G14 · dimensions
Enlarge drawing ↗JM21-M5 · dimensions
Enlarge drawing ↗JM22-M5 · dimensions
Enlarge drawing ↗JM23-G18 · dimensions
Enlarge drawing ↗JM24-G18 · dimensions
Enlarge drawing ↗JM25-M3 · dimensions
Enlarge drawing ↗JM27-M5 · dimensions
Enlarge drawing ↗JM28-M8 · dimensions
Enlarge drawing ↗JM29-M5 · dimensions
Enlarge drawing ↗JM30-G18 · dimensions
Enlarge drawing ↗JM31-M5 · dimensions
Enlarge drawing ↗JM32-G18 · dimensions
Enlarge drawing ↗JM33-M5 · dimensions
Enlarge drawing ↗JM34-G18 · dimensions

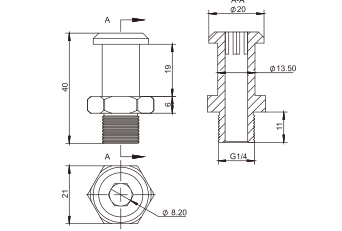

Enlarge drawing ↗JM41-G14 · dimensions

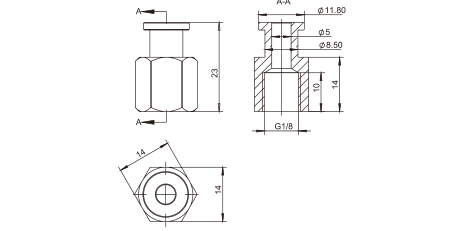

Enlarge drawing ↗JM10-G18-F · dimensions
Enlarge drawing ↗JM35-M5 · dimensions
Enlarge drawing ↗JM36-G18 · dimensions
Enlarge drawing ↗JM37-M5 · dimensions
Enlarge drawing ↗JM38-G18 · dimensions
Enlarge drawing ↗JM39-M5 · dimensions
Enlarge drawing ↗JM40-G18 · dimensions
Enlarge drawing ↗JM-G18M-M10M · dimensions
Enlarge drawing ↗JM-G14M-M10M · dimensions
Enlarge drawing ↗JM-G18M-M5F · dimensions
Enlarge drawing ↗JM-G18M-M8F · dimensions
Enlarge drawing ↗JM-M5M-M8F · dimensions
Enlarge drawing ↗JM-M5M-G18F · dimensions

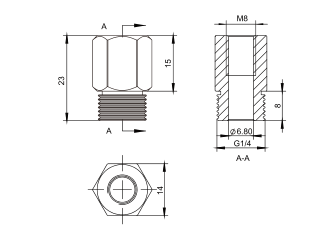

Enlarge drawing ↗JM-G14M-M8F · dimensions
Application details for your quotation
Describe the contact surface, curvature, material and handling orientation. Cup material and fitting thread are separate choices; confirm both with the exact model and operating conditions.
