JSR / JSRT Rotating vacuum suspensions
JSR / JSRT rotating vacuum suspensions. Compare model dimensions, technical specifications and installation drawings to configure your EOAT assembly.
Series image shown. Confirm the exact configuration against the model data below.
Price and lead time: confirmed on inquiry.
Technical specifications
Dimensions (mm)
| Model | A | B | C | D | E | F | G | H | S | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| JSR1011-M5 | M5 | M5 | Ø10 | 3 | 22 | 17 | 8 | 53 | 11 | 11 |
| JSR1021-M5 | M5 | M5 | Ø10 | 3 | 41 | 17 | 8 | 82 | 21 | 17 |
| JSR1421-G18 | G1/8 | G1/8 | Ø14 | 12 | 40 | 20 | 12 | 93 | 21 | 23 |
| JSR1436-G18 | G1/8 | G1/8 | Ø14 | 12 | 60 | 20 | 12 | 128 | 36 | 40 |
| JSR2026-G18 | G1/8 | G1/8 | Ø20 | 15 | 50 | 21 | 16 | 112 | 26 | 50 |
| JSR2051-G18 | G1/8 | G1/8 | Ø20 | 15 | 84 | 21 | 16 | 171 | 51 | 77 |
Dimensions (mm)
| Model | A | B | C | D | E | F | G | H | S | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| JSRT1011-M5 | M5 | M5 | M10*1 | 3 | 22 | 17 | 8 | 53 | 11 | 14 |
| JSRT1021-M5 | M5 | M5 | M10*1 | 3 | 41 | 17 | 8 | 82 | 21 | 26 |
| JSRT1421-G18 | G1/8 | G1/8 | M14*1 | 12 | 40 | 20 | 12 | 93 | 21 | 32 |
| JSRT1621-G18 | G1/8 | G1/8 | M16*1 | 12 | 40 | 20 | 12 | 93 | 21 | 36 |
| JSRT1436-G18 | G1/8 | G1/8 | M14*1 | 12 | 60 | 20 | 12 | 128 | 36 | 60 |
| JSRT1636-G18 | G1/8 | G1/8 | M16*1 | 12 | 60 | 20 | 12 | 128 | 36 | 65 |
| JSRT2026-G18 | G1/8 | G1/8 | M20*1 | 15 | 50 | 21 | 16 | 112 | 26 | 70 |
| JSRT2051-G18 | G1/8 | G1/8 | M20*1 | 15 | 84 | 21 | 16 | 171 | 51 | 104 |
ENGINEERING RESOURCES
Technical drawings
Inspect mounting holes, dimensions and interfaces. Open a drawing to zoom in or download the image.

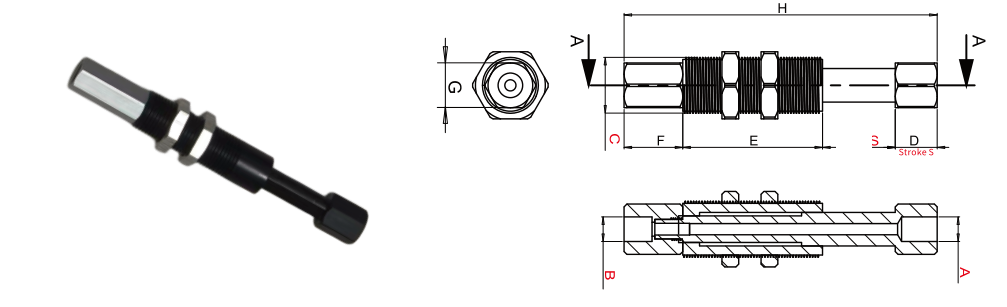

Enlarge drawing ↗JSR / JSRT · Dimensions
Enlarge drawing ↗JSR / JSRT · Dimensions

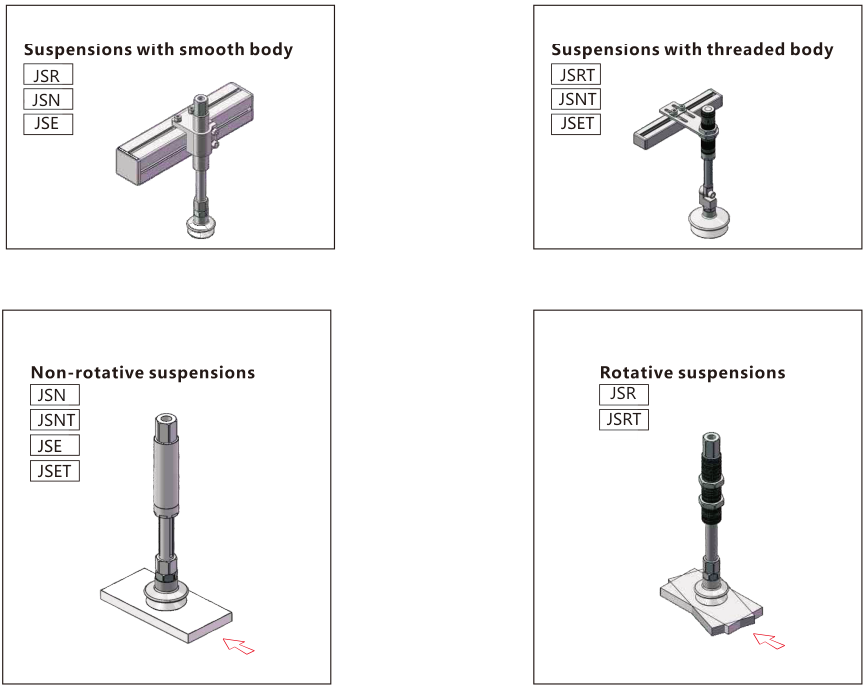

Enlarge drawing ↗Suspension mounting configurations
Application details for your quotation
Describe the contact surface, curvature, material and handling orientation. Cup material and fitting thread are separate choices; confirm both with the exact model and operating conditions.
Read the selection guide ↗
