EOAT frame connectors
JST / JAT / JCT EOAT tubes and end plugs
JST / JAT / JCT eoat tubes and end plugs. Compare model dimensions, technical specifications and installation drawings to configure your EOAT assembly.
Series image shown. Confirm the exact configuration against the model data below.
Price and lead time: confirmed on inquiry.
Technical specifications
Stainless steel tubes
| Model | ØD (mm) | L (mm) | T (mm) | Weight | End cap |
|---|---|---|---|---|---|
| JST8-1500 | 8 | 1500 | 0.6 | 215 g | J08RD |
| JST12-1500 | 12 | 1500 | 0.6 | 339 g | J12GY / J12BU / J12BK |
| JST20-1500 | 20 | 1500 | 0.8 | 560 g | J20GY / J20BU / J20BK |
Aluminum tubes
| Model | ØD (mm) | L (mm) | T (mm) | Weight | End cap |
|---|---|---|---|---|---|
| JAT20-1000 | 20 | 1000 | 2 | 308 g | J20GY / J20BU / J20BK |
| JAT20-2000 | 20 | 2000 | 2 | 616 g | J20GY / J20BU / J20BK |
| JAT25-1000 | 25 | 1000 | 2.5 | 467 g | J25BK |
| JAT25-2000 | 25 | 2000 | 2.5 | 934 g | J25BK |
| JAT30-1000 | 30 | 1000 | 2.5 | 558 g | J30BK |
| JAT30-2000 | 30 | 2000 | 2.5 | 1116 g | J30BK |
| JAT40-1000 | 40 | 1000 | 2.5 | 799 g | J40BK |
| JAT40-2000 | 40 | 2000 | 2.5 | 1558 g | J40BK |
Carbon fiber tubes
| Model | ØD (mm) | L (mm) | T (mm) | Weight | End cap |
|---|---|---|---|---|---|
| JCT8-1000 | 8 | 1000 | 0.8 | 31 g | J08RD |
| JCT8-2000 | 8 | 2000 | 0.8 | 62 g | J08RD |
| JCT12-1000 | 12 | 1000 | 1 | 59 g | J12GY / J12BU / J12BK |
| JCT12-2000 | 12 | 2000 | 1 | 118 g | J12GY / J12BU / J12BK |
| JCT20-1000 | 20 | 1000 | 1.2 | 103 g | J20GY / J20BU / J20BK |
| JCT20-2000 | 20 | 2000 | 1.2 | 206 g | J20GY / J20BU / J20BK |
| JCT25-1000 | 25 | 1000 | 1.5 | 169 g | J25BK |
| JCT25-2000 | 25 | 2000 | 1.5 | 339 g | J25BK |
| JCT30-1000 | 30 | 1000 | 1.5 | 236 g | J30BK |
| JCT30-2000 | 30 | 2000 | 1.5 | 472 g | J30BK |
| JCT40-1000 | 40 | 1000 | 2.5 | 431 g | J40BK |
| JCT40-2000 | 40 | 2000 | 2.5 | 861 g | J40BK |
ENGINEERING RESOURCES
Technical drawings
Inspect mounting holes, dimensions and interfaces. Open a drawing to zoom in or download the image.

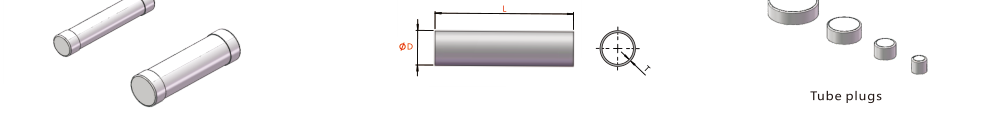

Enlarge drawing ↗JST / JAT / JCT · Dimensions

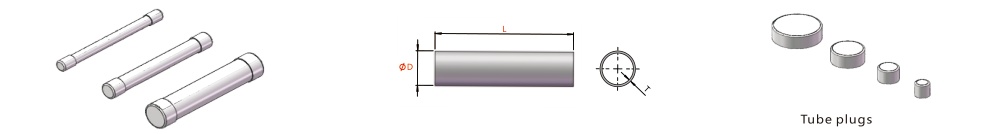

Enlarge drawing ↗JST / JAT / JCT · Dimensions
Enlarge drawing ↗JST / JAT / JCT · Dimensions
Application details for your quotation
Match the profile series before choosing a plate. Check the screw and T-nut combination in the compatibility tables rather than assuming that equal outside dimensions mean equal fit.
